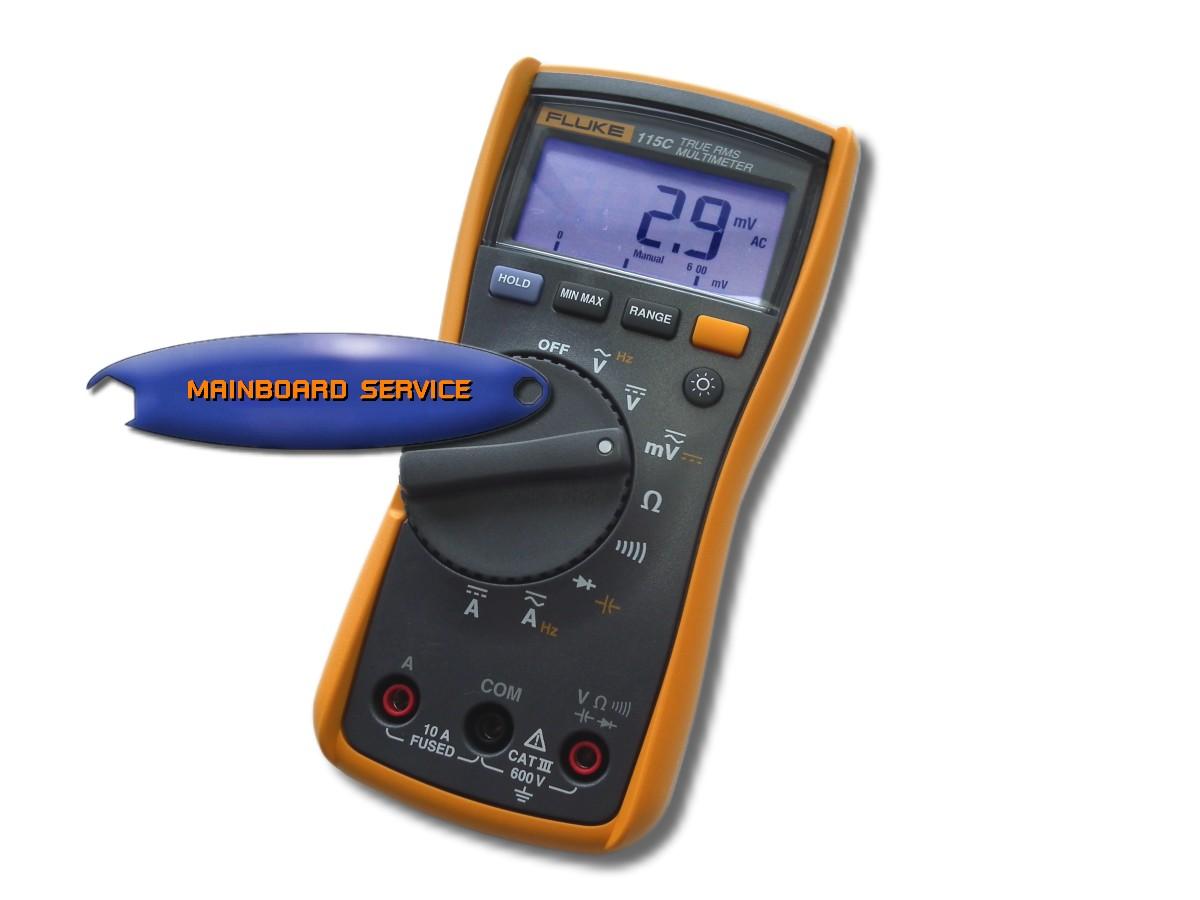

Field Digital Multimeter 1000uF with Backlight

Specifications

Maximum voltage between any terminal and earth ground600 V

Surge protection6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2

DisplayDigital: 6,000 counts, updates 4 per second

Bar graph33 segments, updates 32 per second

Operating Temperature-10 °C to + 50 °CStorage Temperature-40 °C to + 60 °C

Battery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life400 hours typical, without backlight



Accuracy Specifications

DC millivolts

Range:600.0 mV

Resolution:0.1 mV

Accuracy:± ([% of reading] + [counts]): 0.5% + 2

DC volts

Range/Resolution:6.000 V / 0.001 V

Range/Resolution:60.00 V / 0.01 V

Range/Resolution:600.00 V / 0.1 V

Accuracy:± ([% of reading] + [counts]): 0.5% + 2

AC millivolts true-rms

Range:600.0 mV

Resolution:0.1 mVAccuracy:1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)AC volts1 true-rms

Range/Resolution:6.000 V / 0.001 V

Range/Resolution:60.00 V / 0.01 V

Range/Resolution:600.0 V / 0.1 V

Accuracy:1.0 % + 3 (dc, 45 Hz to 500 Hz)2.0 % + 3 (500 Hz to 1 kHz)

Continuity

Range:600 Ω

Resolution:1 Ω

Accuracy:Beeper on < 20 Ω, off > 250 Ω; detectsopens or shorts of 500 μs or longer.

Ohms
