รายละเอียดสินค้า

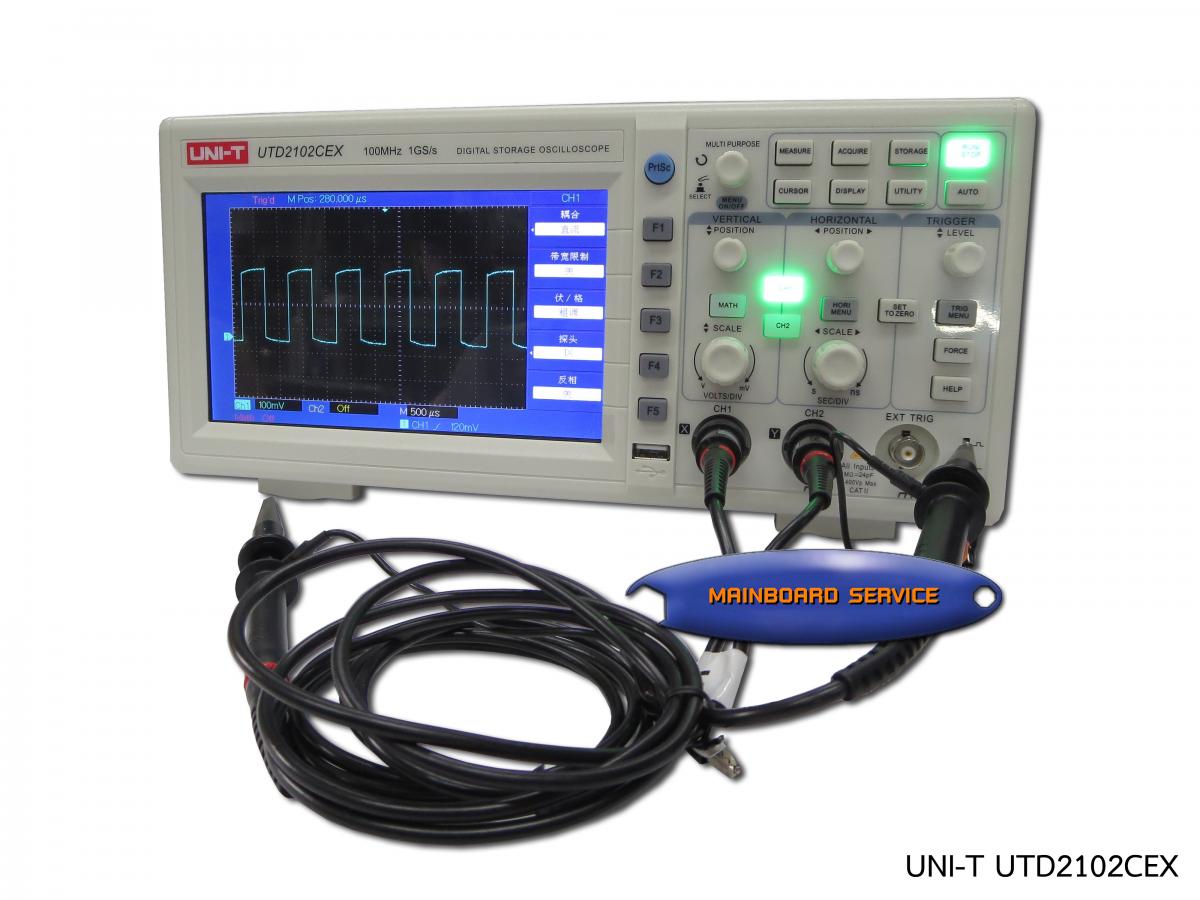

- Model: UTD2102CEX

- 7.0" LCD display

- Bandwidth: 100MHz

- Rise Time: <= 3.5ns

- Real-Time Sampling Rate: 1GS/S

- Equivalent Sampling Rate: 50GS/s

- Vertical Deflection Coefficient: 1mV ~ 20V/div

- Record Length: 2 x 600kpts

- Scan Time Base: 2ns ~ 50s/div

- Trigger Type: Edge, Pulse & Alternate

- Automatic Waveform Measurements: 28

- Frequency Counter: 6 digits frequency counter

- Ports: USB OTG

- Mathematics: Add, Subtract, Multiply, Divide, FFT

- Power: AC 100~240V RMS, 45~440Hz, CAT II

- Accessories:

- 1 x Power cable (200cm)

- 2 x Test Probes (120cm)

- 1 x USB cable (128cm)

- 1 x Software CD

- 1 x English user manual



Feature

UTD2102CEX



Bandwidth

100 MHz



Rise Time

≤3.5 ns



Real-time Sampling Rate

1GS/s



Equivalent Sampling Range

50GS/s



Vertical Sensitivity

1mV ~ 20V/div



Record Length (Max)

2 x 600k



Scan Time Base

2ns ~ 50s/div



Trigger Type

Edge, Pulse, Alternate



Automatic Waveform Measurements

28



Frequency Counter 6 digits frequency counter



Ports

USB OTG



Mathematics

Add, Subtract, Multiply, Divide, FFT



Other Features

Special Print Screen Feature

GENERAL CHARACTERISTICS



Power

100 - 240VACRMS, 45Hz -440Hz, CAT II



LCD Size

Diagonal 178mm (7 inches)



Product Color

Red and Grey



Product Net Weight

2.2kg



Product Size

306mm x 147mm x 122mm



Accessories

Probe x 2 (1x, 10x switchable), Power Cord and English Manual UT-D05 USB Cable, PC Communication Software



Standard Individual Packing

Gift Box



Standard Quantity Per Carton

2 pcs



Standard Carton Measurement

445 x 410 x 270mm (0.055 CBM Per Export Carton)



Standard Carton Gross Weight

Around 8.5kg
