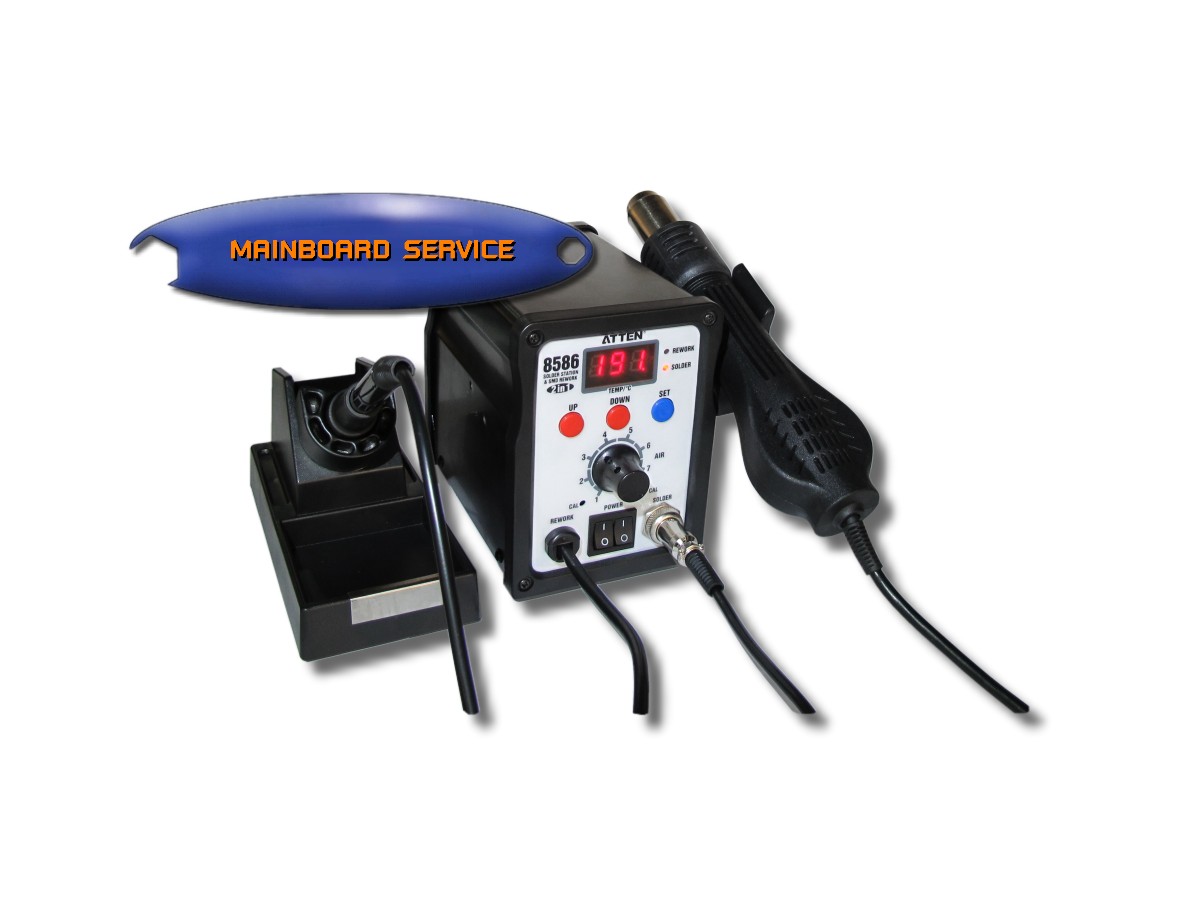

Hot air station and soldering station set(the two of them can work separately without mutural interference). Digital LED temperature display, so that the operation more convenient and accurate. Self-examine and error check, with screen remindings to guide people to repair. Adopts Closed-loop control sensors for temperature accuracy and stability. Ideal for safe demolition solder QFP, PLCC, SOP, BGA and other chips and components which are temperature-sensitive. Intelligent cooling system, after the shutdown delay completion of the work of air, air temperature lower than 100 automatically cut off power supply. Use of imported air pump for low vibration, noise-free design and maintain a quiet working environment. Static elimination design, prevent PCB board damage due to static or electric leakage.

Machine

Rated Voltage: AC 220V ± 10% 50Hz

Total Power: 750W (Max)

Work environment :0-40

Relative humidity : 80%

Storage Temperature: -20 -80 Hot air rework station

Operating voltage: AC 220V ± 10% 50Hz

Output Power: 700W

Temperature range: 100 -500

Temperature Stability: ± 5 Gas flow: 120L/min (max)

Welding table

Operating voltage: AC 26V 50Hz

Output Power: 50W

Temperature range: 200 -480

Temperature Stability: ± 2 (static)

Tip to ground resistance: <2Ω

Tip-to-ground voltage: 3mV
