คุณสมบัติของเครื่องมืองานไฟฟ้า:

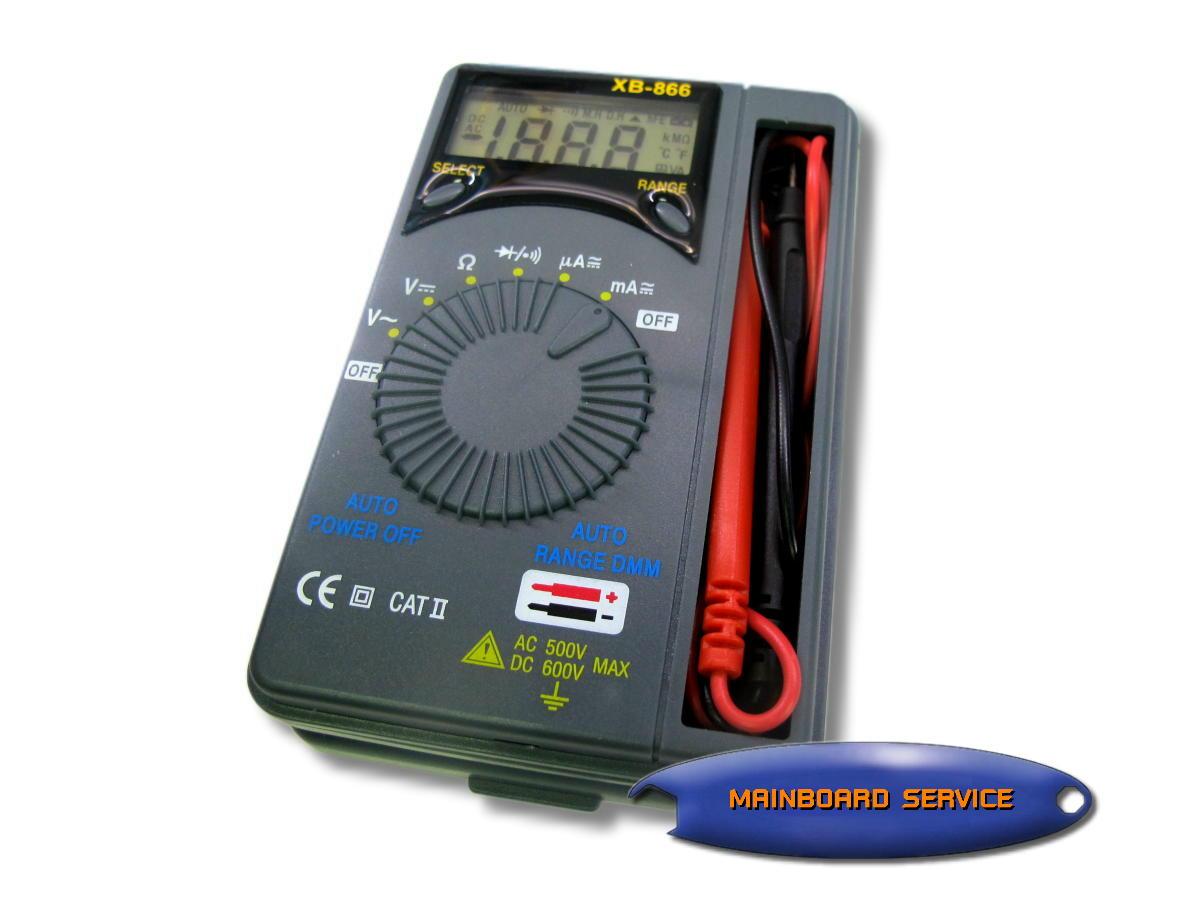

The multimedia has been designed according to IEC-1010 concerning electronic measuring instruments with an over voltage category (CAT II) and Pollution 2.

Over range protection for all ranges.

LCD display.

Max. Show Value: 1999 counts max.

Polarity indication:  "-" indicates negative polarity.

Over range indication. Display "OL" or "-OL"

Auto power off time: 15min

Low battery indication.
Max. Voltage between Terminals and Earth Ground; 600V DC or 500V AC


Specifications:

Operating Altitude: 2000 meters (7000ft.) maximum

Max.Show Value: 1999 counts max

Sampling Time: approx.0.4 second

Power Supply: 1.5V x 2 pcs


DC  Voltage:
Range        Resolution          Accuracy
200mV           0.1mV               +-0.4%
2V                  1mV                 +-0.5%
20V                10mV                +-0.5%
200V              100mV               +-0.5%
600V              1V                     +-0.8%


AC Voltage:
Range        Resolution          Accuracy
2V                  1mV                  +-0.8%
20V                10mV                 +-0.8%
200V              100mV                +-0.8%
500V              1V                      +-1.2%


Resistance:
Range        Resolution          Accuracy
200Ω                0.1Ω               +-0.8%
2KΩ               &nbs
